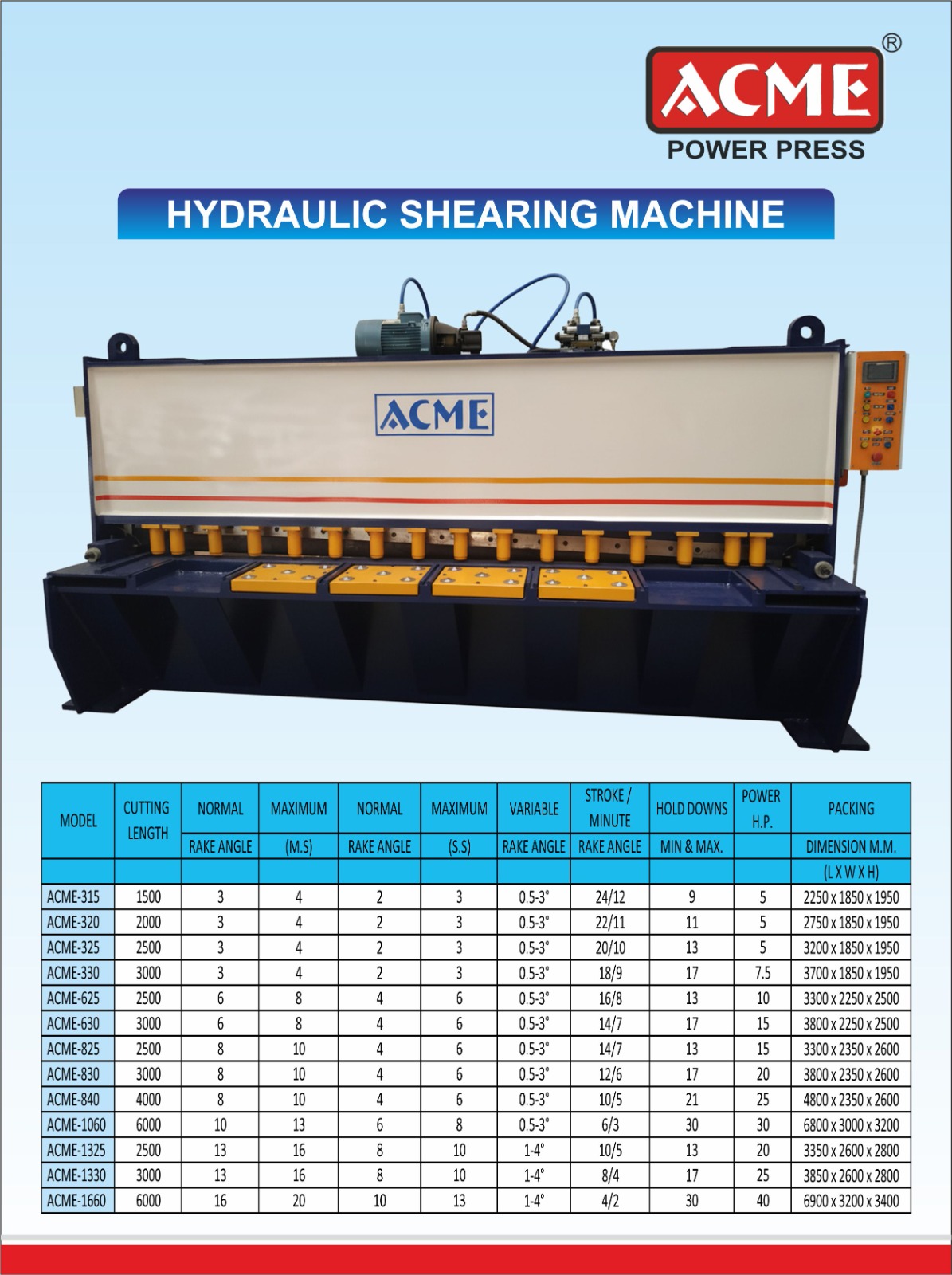

Nc Hydraulic Shearing Machine
The NC Hydraulic Shearing Machine is designed for high-accuracy and efficient sheet metal cutting with reliable numerical control.
Equipped with an NC control system, it allows precise setting of cutting length, stroke, and back gauge position, ensuring consistent and repeatable result.
Powered by a hydraulic system, the machine delivers smooth, uniform cutting force for clean and burr-free edges.
Its rigid frame construction minimizes vibration and ensures stable performance during continuous operation.
Manufactured using high-quality materials and precision-engineered components, the NC Hydraulic Shearing Machine offers improved productivity, low maintenance, and long service life.
It is widely used in sheet metal fabrication, automotive components manufacturing, electrical panel production, and general engineering industries where precision and control are essential.
Nc Hydraulic Shearing Machine
The NC Hydraulic Shearing Machine is designed for high-accuracy and efficient sheet metal cutting with reliable numerical control.
Equipped with an NC control system, it allows precise setting of cutting length, stroke, and back gauge position, ensuring consistent and repeatable result.
Powered by a hydraulic system, the machine delivers smooth, uniform cutting force for clean and burr-free edges.
Its rigid frame construction minimizes vibration and ensures stable performance during continuous operation.
Manufactured using high-quality materials and precision-engineered components, the NC Hydraulic Shearing Machine offers improved productivity, low maintenance, and long service life.
It is widely used in sheet metal fabrication, automotive components manufacturing, electrical panel production, and general engineering industries where precision and control are essential.
Product Specification
Capacity:
Cutting: 02 mm to 25 mm Cutting.
Length: 1250 mm to 7000 mm.
Standard Accessories:
Full Steel body shearing machine
Variable rake angle
Finger safety guards
Lights at cutting area
Table roller for easy sheet movement
Front sheet support arms.
D2 & Turbo blades.
Lubrication System - Centralized lubrication systems.
Manual Back Gauge – 600 mm.
Operation and Maintenance Manual Book
Material test reports.
Machine test reports.
Warranty certificates.
Separate model numbers.
Optional Features:
Motorized back gauge
DRO, Motorized back gauge.
NC Control. HMI Display & Ball screw gauge
REAR guard
Guillotine
Front sheet storage table
Auto lubrications
NC Control.
7” DIGITAL TOUCH COLOUR DISPLAY FOR EASY PROGRAMMING.
1. SCHNEIDER MAKE PLC CONTROLLER
2. AUTOMATIC RAKE ANGLE ADJUSTMENT THROUGH CONTROLLER AS PER THICKNESS
3. AUTOMATIC STROKE LENGTH CONTROL THROUGH CONTROLLER.
4. X – AXIS SERVO BACK GAUGE
5. MULTIPLE BACK-GAUGE PROGRAM WITH STROKE COUNTING ON SCREEN.
6. HIGH-SPEED BACK GAUGE MOVEMENT BY AC SERVO DRIVE.
7. HARDENED BALL SCREW,
8. TIMING BELT FOR PRECISION
9. AUTO PROGRAM FUNCTION
10.50 PROGRAM STORAGE
